Messerschmitt Me-262 Schalbe (Swallow),
Sturmvogel (Storm Bird), and Avia S-92 Turbína (Turbine)
This page started based on the Messerschmitt Me-262A1b, a rare derivative powered by a pair of BMW 003 engines which are made in resin by Lone Wulf models in 1/72 for either the Matchbox, Revell or Hasagawa kits. The BMW 003s were the original engines for the new Me-262 V1 Schwalbe, but during initial flights flamed out or, due to poor metallurgy, stator blades broke off and were sucked into the engine. Luckily for the pilot, the Junkers Jumo piston engine was still in the test airframe for a safe landing.

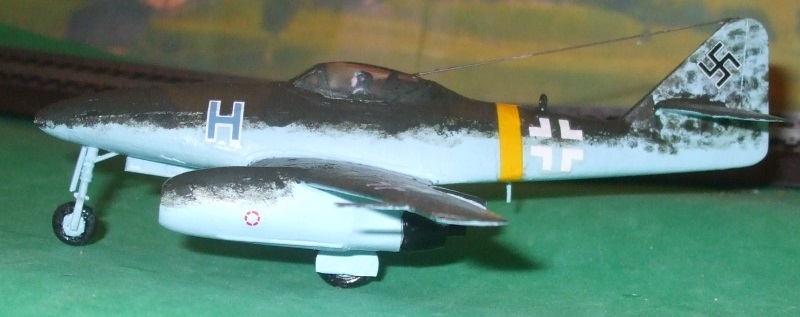

Messerschitt Me-262A1b powered by BMWoo3 turbojets from LoneWulf Models for Matchbox kit 1/72. Model and photo by Zane R Nobbs
At this point the Junkers Jumo 004 engines were developed, but were significantly heavier than the BMW 003s, however, the decision was to continue with these. After successful testing, the airfame had to be revised for the heavier engines, thus the overwhelming majority of Me-262s, designated A1a, were powered by a pair of Junkers Jumo 004s. On Hitler's insistance a majority of airframes were manufactured to carry bombs and this version was known as the Sturmvogel, an initial jet-powered fighter-bomber combination.

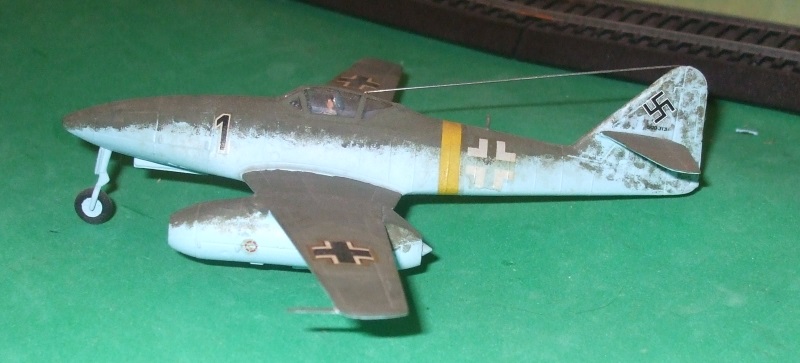

Matchbox Messerschmitt Me-262A1a in 1/72. Model and photo by Zane R Nobbs.
However, as Germany's war situation worsened, any and all variations were approached including a few Messerschmitt Me-262A1b models. These were not the version with the BMW 003 rocket-assisted engines, but the straight BMW 003. Along the way, as things began to reverse significantly on the Russian Front, the Furher eventually allowed aircraft for the Russian Liberation Army (Русская Oсвободительная Aрмия - POA) formed originally as a propoganda unit of volunteers captured from the Soviet armed forces to liberate Russia from Stalin and the Bolsheviks. Later these divisions were expanded to nearly 1 million service personnel including an POA air division. Documentation suggests (not verified) that at least one and possibly two Me-262A1as were alloted to the POA Air Force in February 1945, and near the end of the war Himmler even advocated formation of a Ukrainian flighter unit.

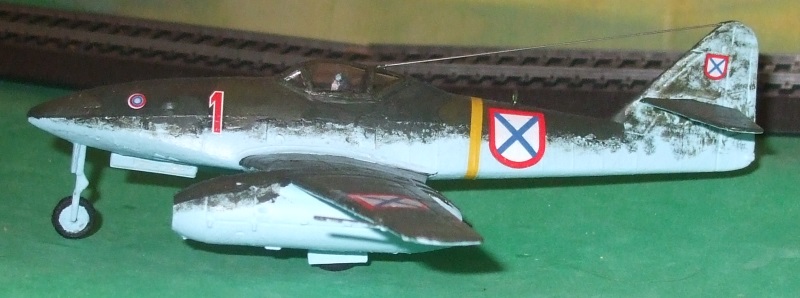

Messerschmitt Me-262A1a POA, Hasagawa 1/72. Model and photo by Zane R Nobbs.
Beside these developments the Me-262 inspired other aircraft for Japan. During the war an Imperial Japanese Army officer was privy to development of the Me-262 leading to an airframe and technical data being sent to Japan by submarine. The submarine with the airframe was sunk en route, however, the technical data was successfully delivered leading to two projects by Nakajima.

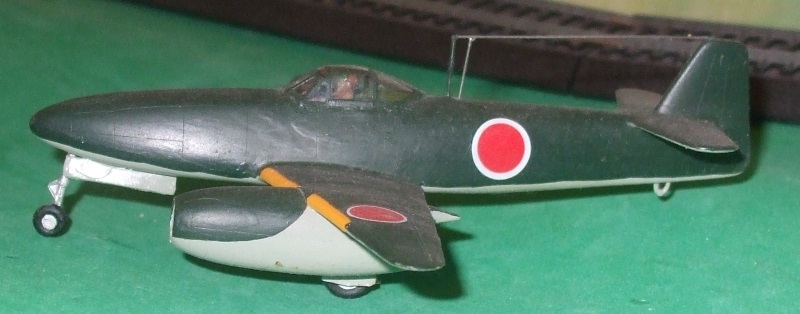

Nakajima J9N1 Kikka prototype 1/72 by Special Hobby. Model and photo by Zane R Nobbs
The first of these was the Nakajima (J9N1) Kikka (中島 橘花 - Orange Blossom) for the Imperial Japanese Navy modeled on the Me-262 with engines derived from the Junkers Jumo 004, but significantly smaller. This aircraft was designed, built and flown in 1945, just prior to the conclusion of WWII. Similar to Hitler's idea for the Me-262 to be a fighter-bomber (Sturmvogel), the first Kikkas were designed as bombers or attack (suicide) aircraft. Fighter versions were planned.

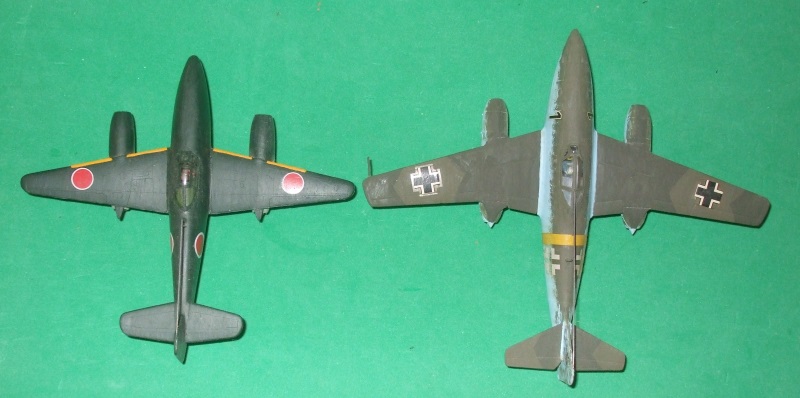

Nakajim J9N1 Kikka compared to Messerschmitt Me-262A1a Schwalbe in 1/72. Models and phot by Zane R Nobbs
The second project undertaken by Nakajima was the Nakajima Ki-201 Karyu (中島- Dragon Slayer) for the Imperial Japanese Army.
Nakajima Ki-201 Karyu by Ushi Models in prototype colors in 1/72. Model and photo by Zane R Nobbs
This aircraft had more powerful engines on par with the Junkers Jumo 004s and had reached about 3/4 construction by the end of the war. It was intended to fly in October/November of 1945.

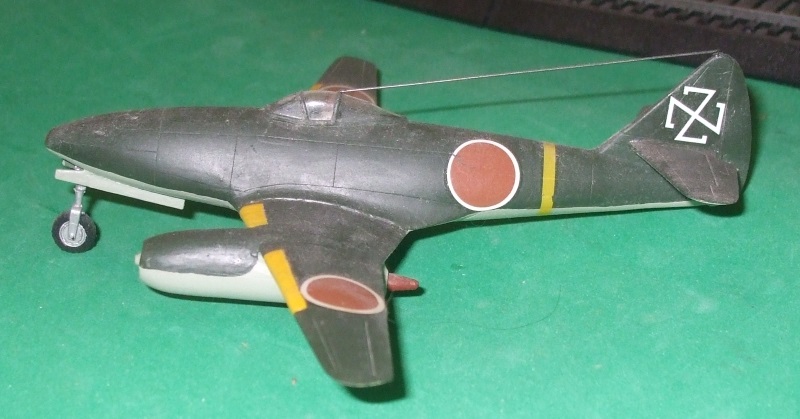

Nakajima Ki-201 Karyu by RS Models in 1/72. Model and photo by Zane R Nobbs.
The Karyu was much larger than the Kikka and slightly larger than the Me-262, but retained the same layout. Performance would have been superior to the Kikka and at least as good as the Schwalbe.

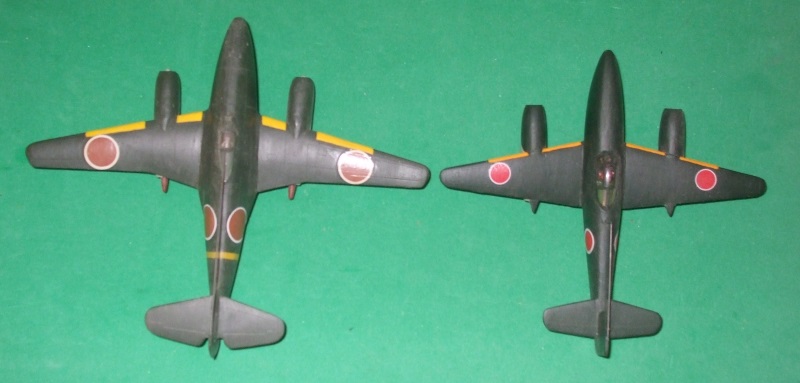

Nakajima Ki-201 Karyu and Nakajima J9n1 Kikka compared. Models and photo by Zane R Nobbs.
Even before the end of hostilities the Schwalbe is said to have inspired yet another aircraft, that being the Soviet Sukhoi Su-9K (Самолет К - Aircraft K) [NATO Code: Type 8] powered by a pair of captured Junkers Jumo 004 engines. The Su-9K was started in 1944 at the insistance of Stalin to come up with a counter to the Me-262. Though the cross section of the airframe more closely resembles the American Bell P-39 Cobra, many of which were sent to the Soviet Union, Stalin was discouraged from mass production of the Su-9K by Yakovlev's suggestion that is too closely resembled the Me-262.

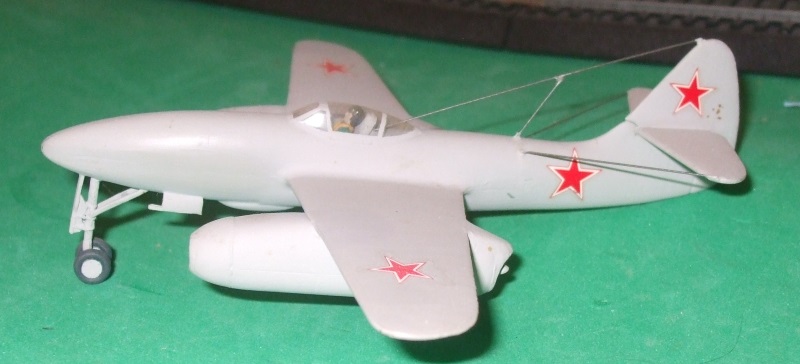

Sukhoi Su-9K Самолет К (Aircraft K) in 1/72 from Victoria Models. Model and photo by Zane R Nobbs.
Post-war the Me-262 received a new lease-on-life when in Czechoslovakia it was discovered that a German Me-262 construction site was still intact. Spare parts were gathered up and the assembly line reconstructed to build several Avia S-92 Turbínas (Turbines) powered by Junkers Jumo 004s. Avia also tested a version powered by the BMW 003, but reverted back to the Junkers Jumo 004s.

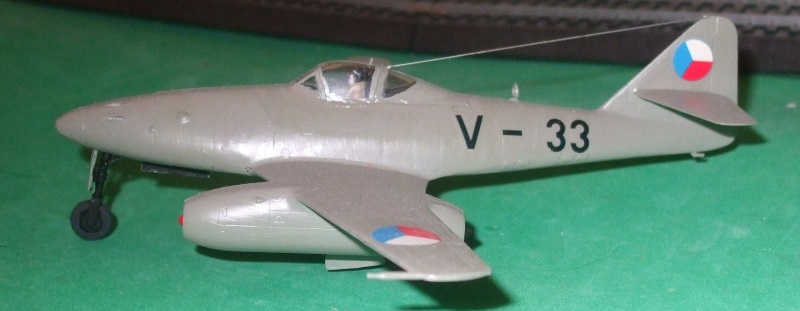

Avia S-92 Turbina of the Czechoslovakian Air Force in 1/72 by Hasagawa. Model and photo by Zane R Nobbs.
Avia S-92s equipped at least one unit for the reconstituted Czechoslovakian Air Force and were also used as civilan aircraft for the Czechoslovakian Air Police. In an effort to revive it's indigenous aviation industry, Czechoslovakia also negotiated to provide Yugolavia with the S-92 Турбине (Turbína), designating two airframes, however, as the Soviet Union exterted pressure, this was discouraged from taking place so that the Russians had markets for their MiG-15s, Yak-23s and others.

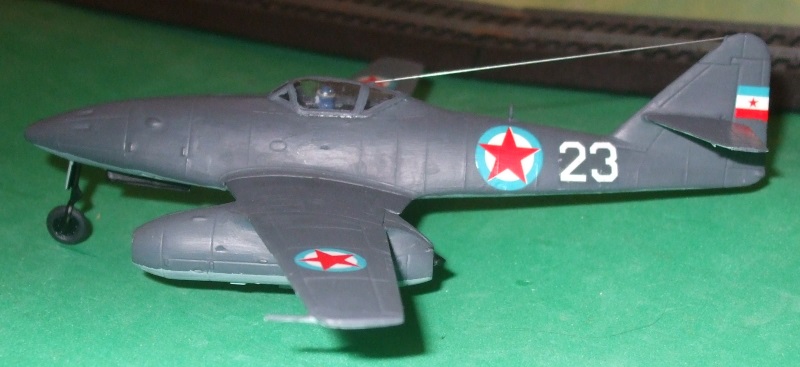

Авиа С-92 Турбина (Avia S-92 Turbína) prototype for the Yugoslavian Air Force in 1/72 from Hasagawa. Model and photo by Zane R Nobbs.
Undeterred, Czechoslovakia continued on with the Avia S-92 Turbína for as long as they could into the 1950s. In another bid for foreign customers, there are unconfirmed reports that once Israel had established independence, one to three Avia S-92s were sprited there as test aircraft. One was said to have been destroyed with the other two either being stored or cut up for scrap. This instance has yet to be verified.

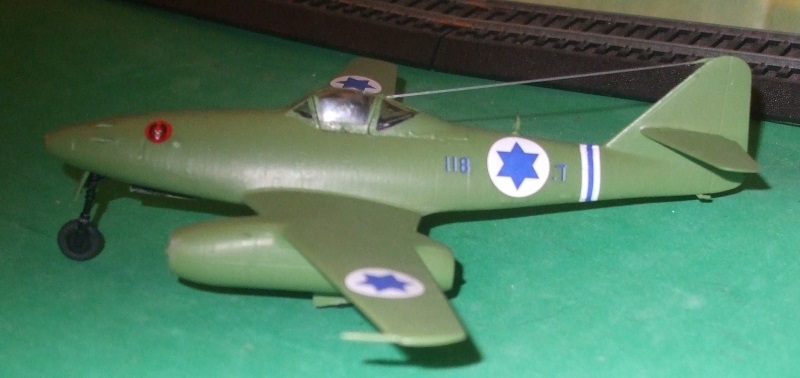

אביה ס- 92 טורבינה (Avia S-92 Turbína) prototype for the Israeli Defence Force in 1/72 by Hasagawa. Model and photo by Zane R Nobbs.
Thus the world's first commissioned combat jet aircraft not only survived the conflict for which it was built, but went on to serve well beyond that point. In fact, today replicas of the Me-262 have been resumed by a company in Texas, The Me-262 Project, for both historical purposes and for those who want and can afford a very historically accurate replica. The exception is that the real, modern turbojets are contained within an external housing based on the appearance of the Junkers Jumo 004 turbojet.

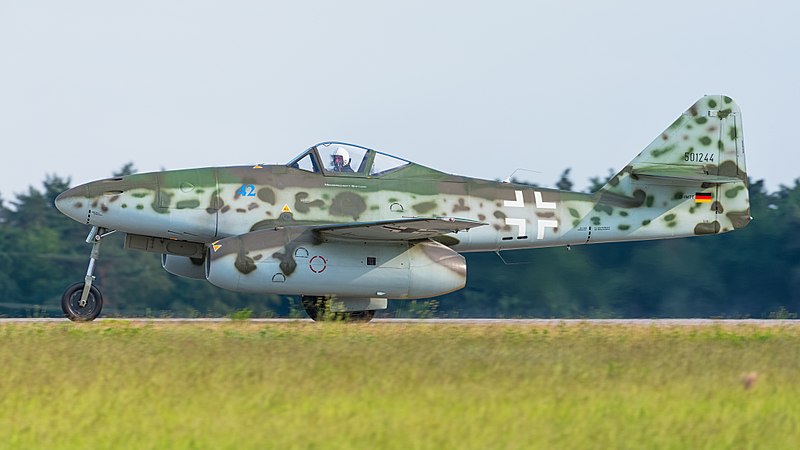

Messerschmitt Me-262 Schwalbe built by the Me-262 Project. Photo by Julian Herzog.
Dimensions for Messerschmitt Me-262 Schwalbe (Swallow), Sturmvogel (Storm Bird) and Avia S-92 Turbína (Turbine)
Wingspan: 40 feet, 11.5 inches (12.5 meters)
Length: 34 feet, 9.5 inches (10.6 meters)
Height: 12 feet, 7 inches (3.8 meters)
Weight: 14,110 pounds (6,500 kilograms)
Engines: 2x Junkers Jumo 004s or 2x BMW 003s axial-flow turbojets
Armament: 4x 30mm MK 108 cannons (Schwalbe), and 2x 1,100 pound (500 kilogram) bombs (Sturmvogle)
Peformance
Maximum Speed: 540 mph (870 kph)
Celing: 37,565 feet (11,500 meters)
Range: 652 miles (1,502 kilometers)
Dimensions for Nakajima J9N1 Kikka (中島 橘花 - Orange Blossom)
Wingspan: 32 feet, 9 inches (10 meters)
Length: 26 feet, 7 7/8 inches (8.135 meters)
Height: 9 feet, 8 inches (2.95 meters)
Weight: 7,715 pounds (3,500 kilograms)
Engines: 2x Ishakawajima Ne-20 axial-flow turbojets
Arms: 1x 1,102 pound (500 kilgram) or 1x 1,764 pound (800 kilogram) bomb
Performance
Maximum Speed: 433 mph (697 kph)
Ceiling: 39,370 feet (12,000 meters)
Range: 586 miles (943 kilometers)
Dimensions for Najakima Ki-201 Karyu (中島 - Dragon Slayer)
Wingspan: 44 feet, 11 inches (13.7 meters)
Length: 37 feet, 8.75 inches (11.5 meters)
Height: 13 feet, 4 inches (4.69 meters)
Weight: 51,400 pounds (7,000 kilograms)
Engines: 2x Ishikawajima Ne-230 axial-flow turbojets
Armament: 2x 20 mm and 2x 30 mm cannons
Performance
Maximum Speed: 592 mph (852 kph)
Ceiling: 39,400 feet (12,000 meters)
Range: 609 miles (980 kilometers)
Dimensions for Sukhoi Su-9K (Самолет К - Aircraft K)
Wingspan: 36 feet, 9 inches (11.2 meters)
Length: 34 feet, 7 inches (10.54 meters)
Height: 11 feet, 2 inches (3.4 meters)
Engines: 2x RD-10s (2x Junkers Jumo 004s) axial-flow turbojets
Arms: 1x 37 mm & 2x 23 mm cannons & 1x 1,102 pound (500 kilogram) bomb
Peformance
Maximum Speed: 550 mph (885 kph)
Ceiling: 42,000 feet (12,800 meters)
Range: 746 miles (1,200 kilometers)
References for this Article:
Encyclopedia of German Military Aircraft, by Bryan Philpott, South Park, 1986
Turbojet: History and Development 1930-1960 Volume 1 - Great Britain and Germany, by Antony L Kay, Crowood Press, 2007
The Complete Encyclopedia of World Aircraft, by David Donald, Barnes and Noble Books, 1997
Aircraft of the World: The Complete Guide, International Masters Publishers, Inc., 1996
The Development of Jet and Turbine Aero Engines, by Bill Gunston, Patrick Stephens Limited, 1995
World Encyclopedia of Civil Aircraft, by Enzo Angelucci, Crown Publishers, Inc., 1982
Rand McNalley Encyclopedia of Military Aircraft, by Enzo Angelucci, Military Press, 1980
The International Encyclopedia of Aviation, by David Mondey, Crown Publishers, Inc., 1977.
The Encyclopedia of the World's Combat Aircraft: A Technical Directory of Major Warplanes from World War 1 to the Present Day, by Bill Gunston, Chartwell Books, Inc., 1976.
Flying Colors: Military Aircraft Markings and Camouflage Schemes from World War 1 to the Present Day, by William Green and Gordon Swanborough, Squadron Signal Publications, Inc., 1981.
Japanese Aircraft of the Pacific War, by Rene J Francillon, published by the Naval Institute Press, 1990.
Monogram Close-Up #19: Kikka, by Robert C Mikesh, published by Monogram Aviation Publications, 1979.
